TPQH31111/TPQH31211

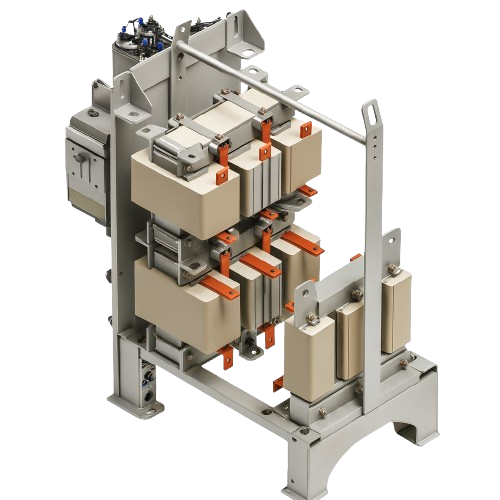

Passive harmonic filter designed and manufactured to provide an economical solution in harmonic mitigation in Power Systems by maintaining THID in compliance with current and voltage requirements of IEEE 519. They increase the reliability and service life of electric installations, help utilize electric system capacity better, and are the key to meeting Power Quality standards
Operating Voltage
415 VAC
Current Rating
300A to 766A
Operating Frequency
50Hz
Mounting
Floor Mounting
Power Rating
200 kW to 500 kW
Design Compliance
Filter: UL 61800-5-1, Chokes: EN 61558-2-20, UL508
Protection category
IP00
