Military standards of EMI/EMC emission and immunity are much higher when compared to commercial applications because costs of error or failure are excessively high. Also demanded by the industrial sector to protect high-value equipment, our proficient military grade filters are especially used for Point of Entry (POE) protection.

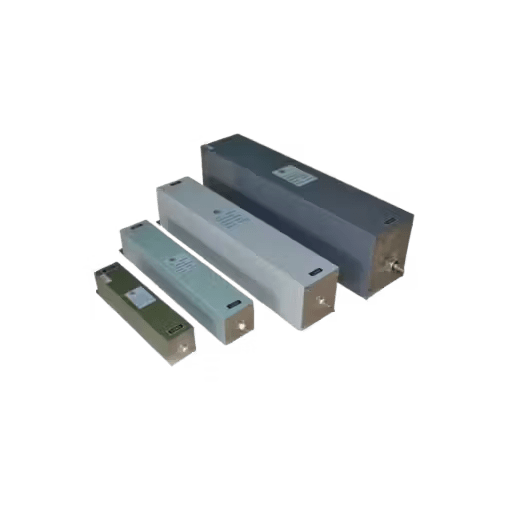

Facility Filter – MF 420-1CF,2CF,3CF,4CF
- Voltage Range: 250VAC for Single Phase and 440VAC for Three Phase
- Current Range: Upto 2000A
- Operating Frequency: 50/60Hz
Download Datasheet ↓

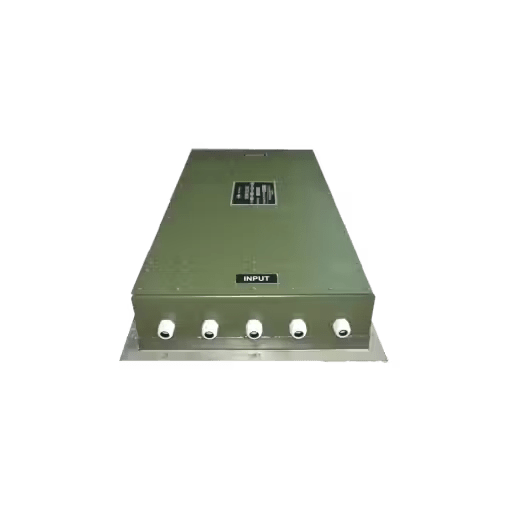

HEMP Filter – HEMP-PLF
- Voltage Range: 230VAC for Single Phase, 440VAC for Three Phase
- Current Range: Upto 2000A
- Operating Frequency: 50/60Hz
Download Datasheet ↓

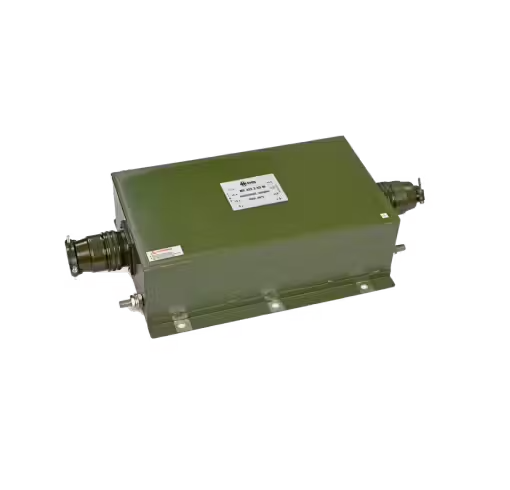

Three Phase EMI Filter MF423-3-3D-M
- Voltage Range: 440/520VAC
- Current Range: 6A to 150A
- Operating Frequency: 50/60Hz
Download Datasheet ↓
Serial Port – EMP Surge Protector – RS 422/485
- Voltage Range: ± 3VDC peak signal voltage
- Current Range: 100mA
- Date Rate: 12Mbps
Download Datasheet ↓

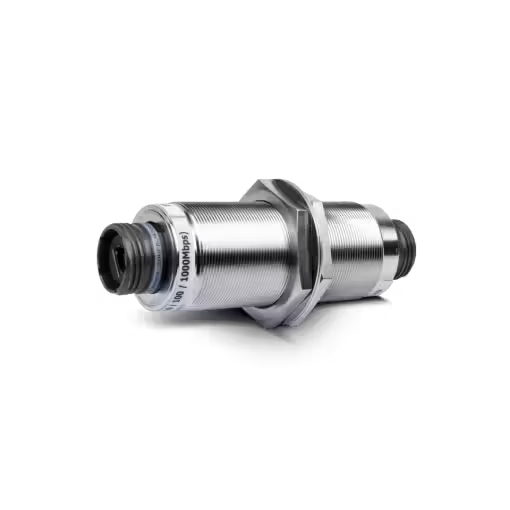

Ethernet EMP Surge Protector – RJ 45
- Voltage Range: ± 3VDC peak signal voltage between Wire Pairs 1-2, 3-6, 4-5 and 7-8.
- Current Range: 250mA
- Date Rate: 10/100/1000Mbps
Download Datasheet ↓
Coaxial EMP Surge Protector – EMISCOA200W
- Current Range: 20 kA, 8/20µs
- Operating Frequency: DC - 2.5 GHz
- Input Power: 200W
Download Datasheet ↓

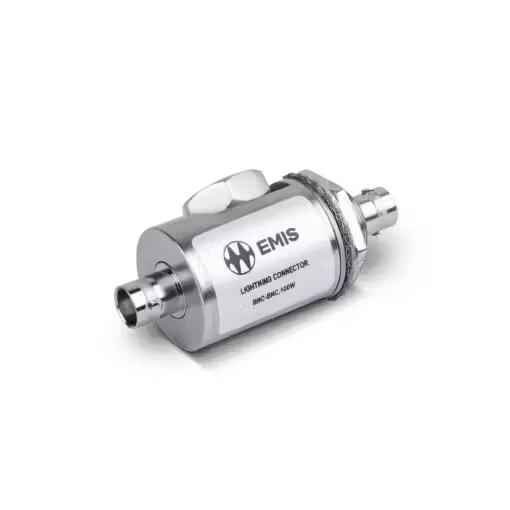

Coaxial EMP Surge Protector – EMISCOA100W
- Current Range: 20 kA, 8/20µs
- Operating Frequency: DC - 2.5 GHz
- Input Power: 100W
Download Datasheet ↓
Control Line HEMP – HEMP-CLF (Single Pair)
- Voltage Range: ± 48 V DC/ 32 V AC
- Current Range: 1 to 6A
Download Datasheet ↓
Control Line HEMP – HEMP-CLF (Multi Pair)
- Voltage Range: 24VDC/30VDC /48VDC/68VDC / 120VAC / 230VAC
- Current Range: 1 to 6A
Download Datasheet ↓

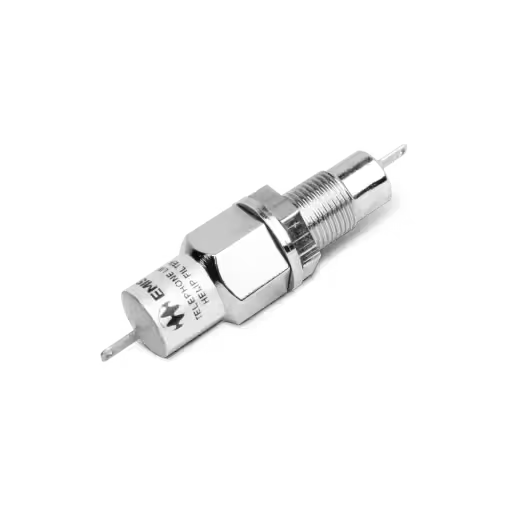

Telephone Line Filter – HEMP-TLF (Single Line)
- Voltage Range: ± 150 V DC
- Current Range: 0.5 A
Download Datasheet ↓
Telephone Line Filter – HEMP-TLF (Multi Line)
- Voltage Range: 95VAC / 125VDC
- Current Range: 125 mA
Download Datasheet ↓

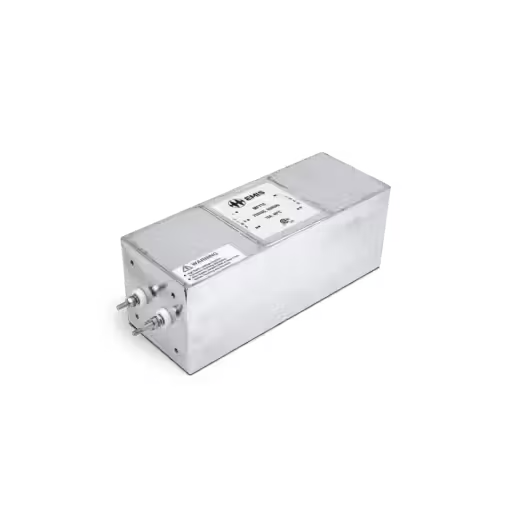

Tempest Filter – MF710
- Voltage Range: 250VAC
- Current Range: 3A to3 2A
- Operating Frequency: 50/60Hz
Download Datasheet ↓
